Ferrari 308 GT4 high performance engine overhaul

Model: 1978 Ferrari 308 GT4

Project Overview: This GT4 was purchased by our customer in need of a restoration. Carobu was enlisted to rebuild the car mechanically. The V8 engine was rebuilt into one of our larger displacement 3.5-liter motors while retaining the original Weber 40 DCN downdraught carburetors. The handling of the Ferrari was improved with the addition of a Razzo Rosso Koni coil-over conversion. Euro 308 Quattrovalvole 16-inch wheels were also installed. This car was featured in Forza Magazine after its completion.

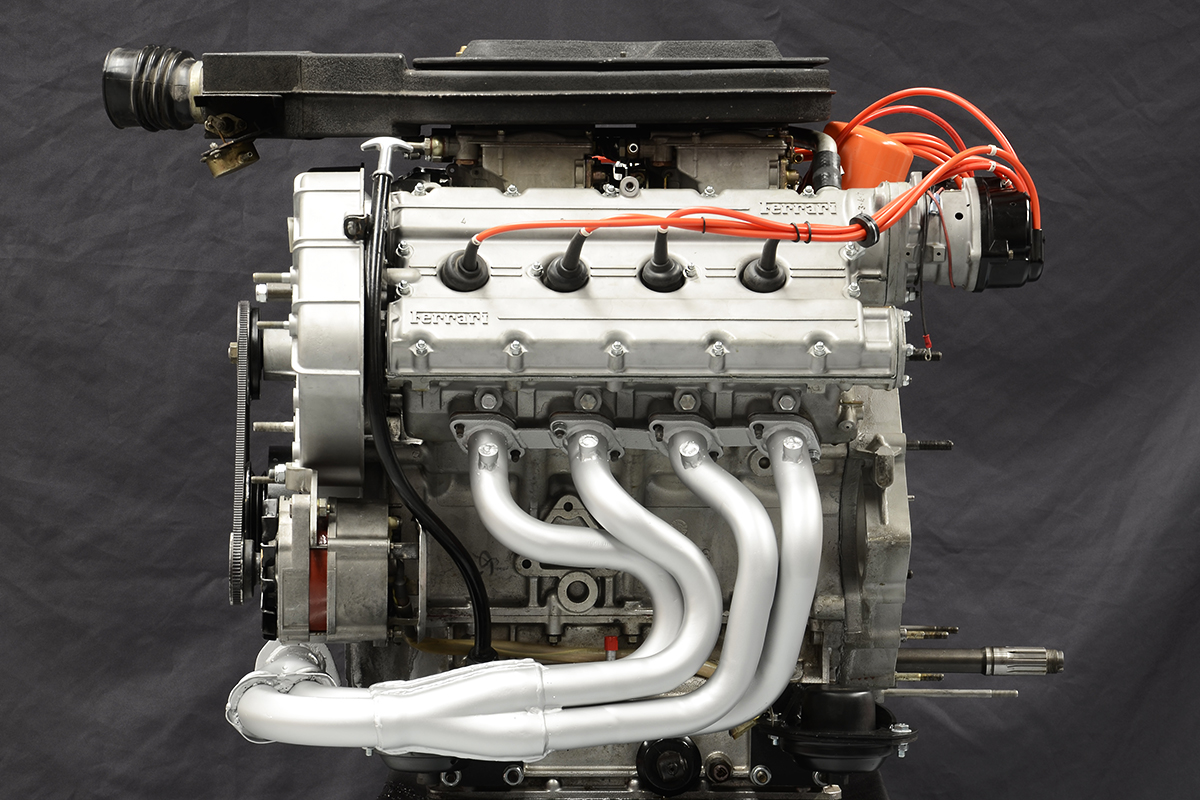

Engine Specs:

279.73-hp @6600-rpm and 240.91 lb-ft of torque @5300-rpm

Click here to see details and dyno sheet on this motor.

Type: V-8, DOHC 2v/cylinder
Bore: Razzo Rosso forged pistons and big-bore liners, 85mm
Stroke: Razzo Rosso stroker crank, 78mm
Compression ratio: 10.5:1
Cylinder heads: intake ported and matched, new stainless steel exhaust valves
Camshafts: special Razzo Rosso profiles
Induction: 4 Weber 40 DCN carbuetors
Exhaust: standard Ferrari headers, port matched, X-Ost Maranello sport muffler
(no cats).
Ignition: Ferrari points/coil type ignition

Suspension and Brakes:

Suspension: slightly stiffer springs, revalved Koni shocks with coil-over conversion, lowered ride height. Larger rear swaybar to balance handling with staggered wheel/tire combination.
Brakes: Stock rebuilt
